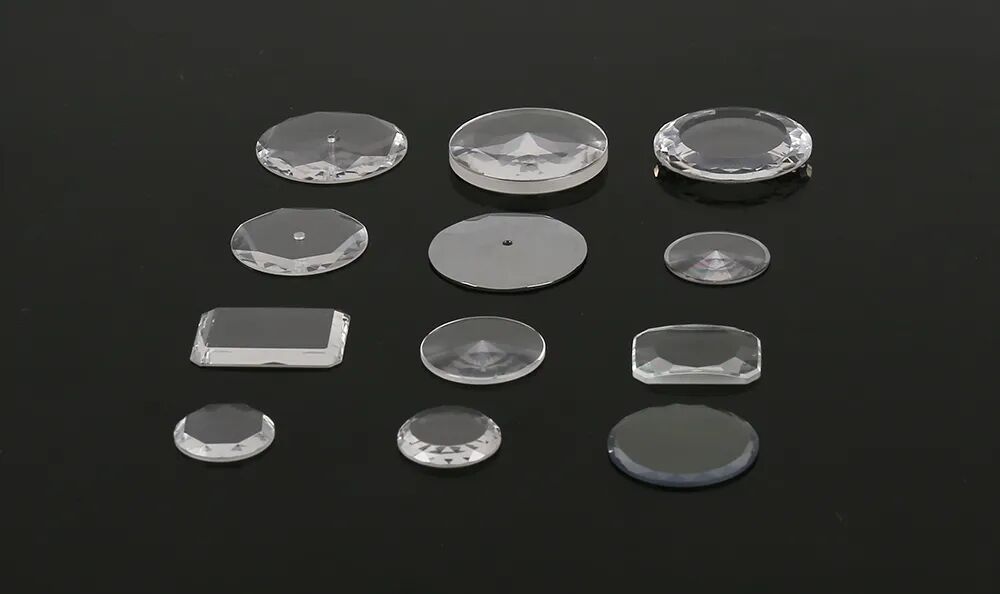

Sapphire window panels, as an optical material, have been widely used due to their excellent physical and chemical properties. In addition to its optical properties, the electrical and dielectric properties of sapphire window panels are also important characteristics that cannot be ignored in practical applications. This article will start from the crystal structure of sapphire, analyze its key parameters such as conductivity, dielectric constant, and breakdown field strength, and explore the impact of these properties on device design.

Sapphire is a single crystal aluminum oxide material with a hexagonal crystal structure. This tightly packed crystal structure endows sapphire with high chemical stability and mechanical strength, while also determining its unique electrical properties. From the perspective of conductivity, pure sapphire exhibits low conductivity at room temperature, typically ranging from 10 ^ -14 to 10 ^ -16 S/cm, making it a typical insulating material. This low conductivity is mainly due to its wide bandgap characteristic (about 8.8eV), which makes it difficult for valence band electrons to transition to the conduction band. In practical applications, this characteristic enables sapphire window plates to effectively isolate current and avoid signal interference, making them particularly suitable for observation windows in high voltage or high-frequency environments.

The dielectric properties of sapphire are also remarkable, with a relative dielectric constant (ε r) of approximately 9.3-11.5 (11.5 parallel to the c-axis and 9.3 perpendicular to the c-axis) at room temperature, exhibiting significant anisotropy. This moderate dielectric constant gives sapphire an advantage in high-frequency applications, as it can provide sufficient capacitance effect without introducing excessive dielectric loss. The dielectric loss tangent (tan δ) of sapphire is on the order of 10 ^ -4 at a frequency of 1MHz, indicating that it has low energy loss in alternating electric fields and is very suitable for insulation components or microwave windows in high-frequency devices.

The breakdown field strength is another important indicator for measuring the electrical performance of insulation materials, and sapphire performs well in this regard. Its DC breakdown field strength can reach over 35kV/mm, far higher than most common insulation materials. This high breakdown field strength characteristic enables sapphire window plates to operate stably in high-voltage environments without dielectric breakdown due to excessive electric fields. For example, in high-voltage discharge experiments, sapphire windows are often used as observation windows, which not only ensure the need for optical observation but also withstand high-voltage impacts during the experimental process.

Temperature has a significant impact on the electrical and dielectric properties of sapphire. As the temperature increases, the conductivity of sapphire increases exponentially, mainly due to the increase in intrinsic carrier concentration caused by thermal excitation. When the temperature rises from room temperature to 500 ° C, the conductivity of sapphire may increase by 4-6 orders of magnitude. In terms of dielectric constant, sapphire remains relatively stable over a wide temperature range (-200 ° C to 1000 ° C), with a variation amplitude generally not exceeding 10%. This temperature stability gives it a unique advantage in high-temperature electronic devices.

In practical applications, the surface treatment of sapphire window plates has a significant impact on their electrical properties. Precision polished surfaces can reduce surface leakage current and increase breakdown voltage. When the surface roughness is reduced from 1 μ m to 10nm, the breakdown voltage of sapphire window can be increased by more than 30%. In addition, surface coating can also change its electrical behavior. For example, after coating with ITO conductive film, the window panel will have both transparency and conductivity, making it suitable for special occasions.

In the fields of radio frequency and microwave, the dielectric properties of sapphire window plates are particularly critical, and their moderate dielectric constant and low loss characteristics make them ideal high-frequency window materials. For example, in microwave plasma equipment, sapphire windows can effectively transmit microwave energy while maintaining the vacuum sealing of the cavity. By accurately controlling the window thickness, impedance matching in specific frequency bands can be achieved, optimizing energy transmission efficiency.

The electrical performance of sapphire window panels in harsh environments is also worth paying attention to. In strong radiation environments, sapphire exhibits good radiation resistance, and its changes in conductivity and dielectric properties are much smaller than those of ordinary glass materials. This makes sapphire window plates an optical material for special environments such as nuclear reactors and space detectors. After being irradiated with gamma rays, the conductivity of sapphire only slightly increases and can be restored to its original state after appropriate annealing treatment.

From the perspective of manufacturing technology, the electrical properties of sapphire window panels are closely related to their crystal quality. High quality single crystals prepared by edge limited thin film growth (EFG) or heat exchange method (HEM) exhibit significantly better electrical properties than polycrystalline sapphire. Defects, impurities, and dislocations in crystals can become scattering centers or trap centers for charge carriers, affecting the resistivity and dielectric loss of materials. Therefore, applications typically specify sapphire crystals grown using specific methods.

With the development of semiconductor technology, the application of sapphire window plates in the field of microelectronics is becoming increasingly widespread. For example, in MEMS devices, sapphire can serve as both an insulating substrate and provide optical observation functionality. Its thermal expansion coefficient, which is similar to that of silicon (about 5.8 × 10 ^ -6/K), reduces thermal stress problems, while its excellent electrical insulation performance avoids signal crosstalk. The dielectric properties of sapphire substrate have a direct impact on the high-frequency performance of GaN based devices.

It is worth noting that the electrical performance testing of sapphire window panels requires special methods. Due to its high resistivity, conventional resistance measurement methods often struggle to obtain accurate results, requiring the use of specialized equipment such as electrostatic meters or high resistance meters. Dielectric performance testing requires attention to electrode design and contact methods to avoid measurement errors. In practical testing, a three electrode system or parallel plate capacitor structure is usually used for measurement under strictly controlled temperature and humidity conditions.

The electrical and dielectric properties of sapphire window panels enable them to play a role in many high-tech fields, from basic insulation properties to complex dielectric behavior, all of which are closely related to the structural characteristics, preparation processes, and usage environment of the material. Understanding these characteristics can help optimize the design and application of sapphire window panels, meeting the growing demand.
